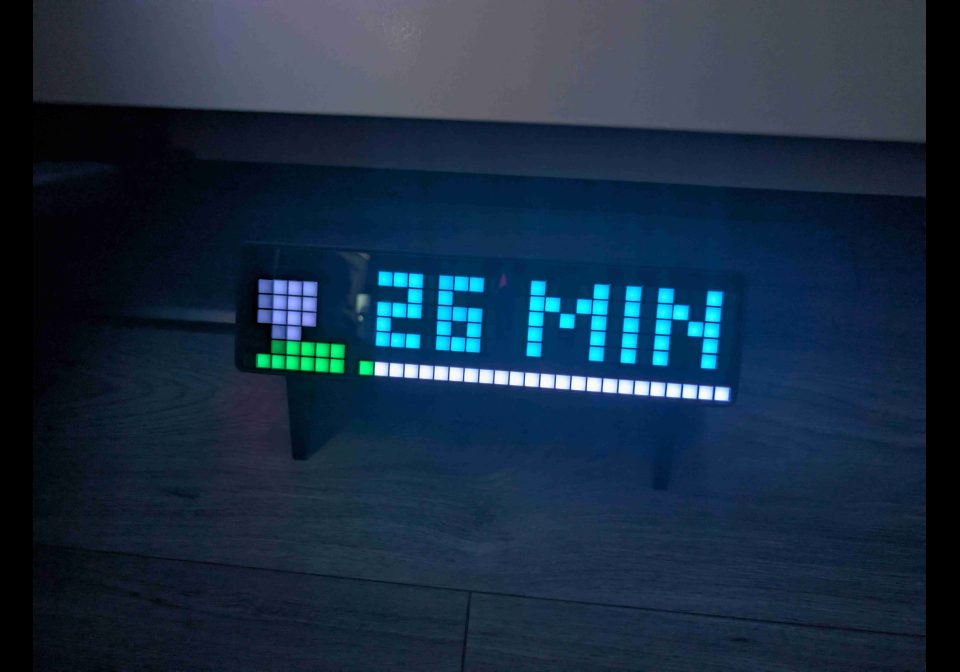

Shows the time left on print and displays a progressbar.
Displays "Ready" when waiting for print job.
App gets removed from the app rotation if printer is no longer reachable.
To configure:
-Insert Octoprint addres in 'http request' and insert octoprint API-key as bearer token.
-Insert Awtrix mqtt prefix in 'Custom App'
Icon Required: 68577
wqGQomx0Ape0.json
[
{
"id": "16e7dffe125168a0",
"type": "inject",
"z": "07fcc1e9c415d5a8",
"name": "Start",
"props": [
{
"p": "payload"
},
{
"p": "topic",
"vt": "str"
}
],
"repeat": "60",
"crontab": "",
"once": true,
"onceDelay": "1",
"topic": "",
"payload": "",
"payloadType": "date",
"x": 350,
"y": 280,
"wires": [
[
"0de3133e6fcdaefc"
]
]
},
{
"id": "7da992173b2032d3",
"type": "mqtt out",
"z": "07fcc1e9c415d5a8",
"name": "Custom App",
"topic": "AWTRIX_PREFIX_HERE/custom/Octoprint",
"qos": "1",
"retain": "false",
"respTopic": "",
"contentType": "",
"userProps": "",
"correl": "",
"expiry": "",
"broker": "7ab578ded1bbee4f",
"x": 990,
"y": 280,
"wires": []
},
{
"id": "0de3133e6fcdaefc",
"type": "http request",
"z": "07fcc1e9c415d5a8",
"name": "",
"method": "GET",
"ret": "obj",
"paytoqs": "ignore",
"url": "http://INSERT-IP-HERE/api/job",
"tls": "",
"persist": false,
"proxy": "",
"insecureHTTPParser": false,
"authType": "bearer",
"senderr": false,
"headers": [],
"x": 530,
"y": 280,
"wires": [
[
"be0d4703729e31b2",
"5da7379ac3bec2dc"
]
]
},
{
"id": "be0d4703729e31b2",
"type": "debug",
"z": "07fcc1e9c415d5a8",
"name": "Debug API response",
"active": false,
"tosidebar": true,
"console": false,
"tostatus": false,
"complete": "payload",
"targetType": "msg",
"statusVal": "",
"statusType": "auto",
"x": 560,
"y": 360,
"wires": []
},
{
"id": "1c8286d28e93ab36",
"type": "comment",
"z": "07fcc1e9c415d5a8",
"name": "Insert API token and octoprint adress here",
"info": "",
"x": 540,
"y": 240,
"wires": []
},
{
"id": "5da7379ac3bec2dc",
"type": "function",
"z": "07fcc1e9c415d5a8",
"name": "To Matrix",
"func": "// Make sure payload exists\nif (!msg.payload || !msg.payload.progress) {\n node.warn(\"Payload missing progress field: \" + JSON.stringify(msg.payload));\n return null; // shouldn't happen but stops if data isn't in expected format\n}\n\nvar completion = msg.payload.progress.completion;\nvar timeleft = msg.payload.progress.printTimeLeft;\nvar state = msg.payload.state; // <-- string (e.g. \"Operational\", \"Printing\", \"Offline\")\nvar icon = 68577;\n\n// Printer offline/not connected but octoprint is reachable = stop sending, let lifetime kill the app\nif (state === \"Offline\" || state === \"Closed\" || state === \"Error\") {\n return null;\n}\n\n// Printer active but not printing\nif (state === \"Operational\") {\n msg.payload = {\n \"text\": \"Ready\",\n \"icon\": icon,\n \"pushIcon\": 0,\n \"lifetime\": 180\n };\n return [msg, null];\n}\n\n// Printer is printing\nif (state === \"Printing\" && completion != null && timeleft != null) {\n completion = completion.toFixed(0);\n var hours = Math.floor(timeleft / 3600);\n var mins = Math.round((timeleft % 3600) / 60);\n\n let text = (hours === 0) ? (mins + \" min\") : (hours + \" h \" + mins + \" min\");\n\n msg.payload = {\n \"text\": text,\n \"icon\": icon,\n \"pushIcon\": 0,\n \"lifetime\": 180,\n \"progress\": Number(completion),\n };\n return [msg, null];\n}\n\n// Default = send nothing, let lifetime kill the app\nreturn null;\n",
"outputs": 1,
"timeout": 0,
"noerr": 0,
"initialize": "",
"finalize": "",
"libs": [],
"x": 760,
"y": 280,
"wires": [
[
"7da992173b2032d3"
]
]
},
{
"id": "7ab578ded1bbee4f",
"type": "mqtt-broker",
"name": "localhost",
"broker": "localhost",
"port": "1883",
"clientid": "",
"autoConnect": true,
"usetls": false,
"protocolVersion": "4",
"keepalive": "60",
"cleansession": true,
"autoUnsubscribe": true,
"birthTopic": "",
"birthQos": "0",
"birthPayload": "",
"birthMsg": {},
"closeTopic": "",
"closeQos": "0",
"closePayload": "",
"closeMsg": {},
"willTopic": "",
"willQos": "0",
"willPayload": "",
"willMsg": {},
"userProps": "",
"sessionExpiry": ""
}
]
These icons belong on the device, in /ICONS. Each one is at
most 32×8
pixels — shown here magnified, at their real proportions.
8×8 px
