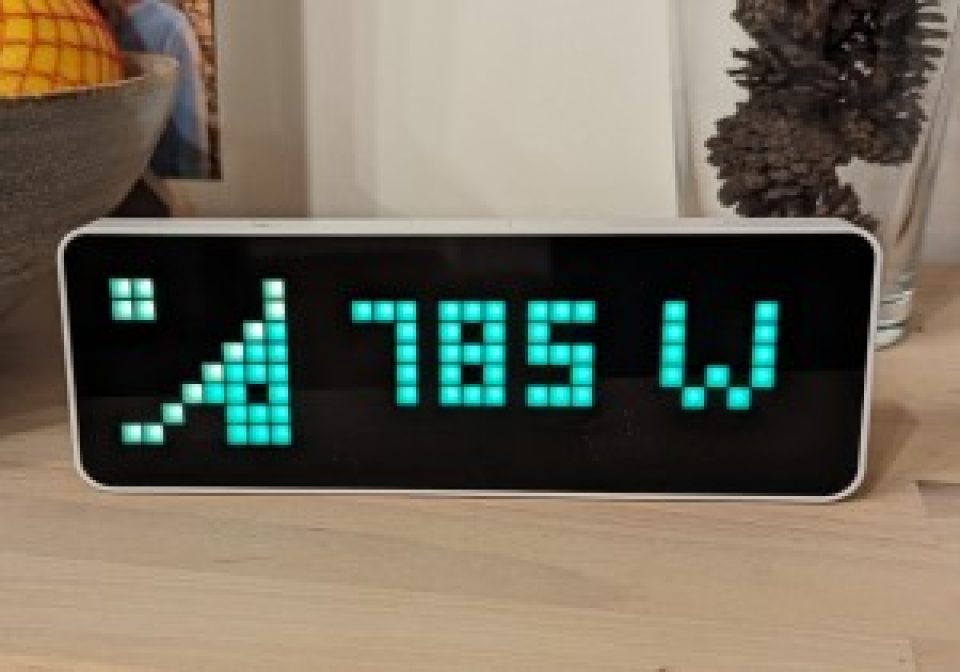

Solar Energy Production

blueprint:
  name: AWTRIX Solar Monitor
  description: 'This blueprint will show the current solar energy received.

    It uses a icons 54156 (solar-green), 50557 (solar-white-dyn), 50546 (solar-static)
    that you need to install.

    '
  domain: automation
  input:
    awtrix:
      name: AWTRIX Device
      description: Select the Awtrix light device
      selector:
        device:
          filter:
            integration: mqtt
            manufacturer: Blueforcer
            model: AWTRIX 3
          multiple: true
    power_source:
      name: Power Sensor
      description: A sensor providing the current power received from your solar system.
      selector:
        entity:
          filter:
            domain: sensor
          multiple: false
    threshold_high:
      name: Threshold for high solar production (W)
      description: The threshold above which the energy production of your solar system
        should be visualized as high. Input in Watts (W).
      selector:
        number:
          min: 0.0
          max: 100000.0
          unit_of_measurement: Watt
          mode: slider
          step: 1.0
      default: 400
    threshold_low:
      name: Threshold for low solar production (W)
      description: The threshold below which the energy production of your solar system
        should be visualized as low. Input in Watts (W).
      selector:
        number:
          min: 0.0
          max: 100000.0
          unit_of_measurement: Watt
          mode: slider
          step: 1.0
      default: 100
    skip_if_zero_watts:
      name: Hide solar production if at 0 Watts
      description: This will not show the solar energy production on your awtrix if
        the production is below 0 Watts.
      selector:
        boolean: {}
      default: false
    skip_during_night_hours:
      name: Hide solar production during night time
      description: This will not show the solar energy production on your awtrix during
        night hours (as specified below).
      selector:
        boolean: {}
      default: false
    night_starts_after_time:
      name: Night Time Start
      description: Set the start of the night time.
      default: 00:00:00
      selector:
        time: {}
    night_ends_after_time:
      name: Night Time End
      description: Set the end of the night time.
      default: 00:00:00
      selector:
        time: {}
mode: single
variables:
  device_ids: !input awtrix
  devices_topics: "{%- macro get_device_topic(device_id) %} {{ states((device_entities(device_id)
    | select('search','device_topic') | list)[0]) }} {%- endmacro %}\n{%- set ns =
    namespace(devices=[]) %} {%- for device_id in device_ids %}\n  {%- set device=get_device_topic(device_id)|replace('
    ','') %}\n  {% set ns.devices = ns.devices + [ device ~ '/custom/solar_power']
    %}\n{%- endfor %} {{ ns.devices }}"
  power_sensor: !input power_source
  power_level: '{{ states[power_sensor].state | int(0) | abs }}'
  threshold_low: !input threshold_low
  threshold_high: !input threshold_high
  power_level_icon: '{%- if power_level > threshold_high %}{{54156}}{%- endif %} {%-
    if (power_level <= threshold_high) and (power_level > threshold_low) %}{{50557}}{%-
    endif %} {%- if power_level <= threshold_low %}{{50546}}{%- endif %}'
  power_level_color: '{%- if power_level > threshold_high %}{{"#04FE04"}}{%- endif
    %} {%- if (power_level <= threshold_high) and (power_level > threshold_low) %}{{"#FCFEFC"}}{%-
    endif %} {%- if power_level <= threshold_low %}{{"#FF4E1A"}}{%- endif %}'
  power_level_text: '{%- if power_level > 1000  %}{{ ((power_level | float(default=0))
    / 1000) | round(1)}} kW{%- else %}{{power_level | round(0)}} W{%- endif %}'
  skip_if_zero_watts: !input skip_if_zero_watts
  skip_during_night_hours: !input skip_during_night_hours
  payload: '{"icon":"{{ power_level_icon }}", "text": "{{ power_level_text }}",  "color":
    "{{ power_level_color }}"}'
  night_start: !input night_starts_after_time
  night_end: !input night_ends_after_time
trigger:
- platform: time_pattern
  minutes: /1
condition:
action:
- choose:
  - alias: Skipping
    conditions:
    - condition: template
      value_template: '{% set now_time = now().strftime("%H:%M") %} {% set night_start
        = night_start %} {% set night_end = night_end %} {{ (skip_during_night_hours
        and ((now_time < night_end) or (now_time > night_start))) or (skip_if_zero_watts
        and (power_level == 0)) }}

        '
    sequence:
    - repeat:
        for_each: '{{ devices_topics }}'
        sequence:
        - service: mqtt.publish
          data:
            qos: 0
            retain: false
            topic: '{{ repeat.item }}'
            payload: '{}'
  - alias: Not skipping
    conditions:
    - condition: template
      value_template: '{% set now_time = now().strftime("%H:%M") %} {% set night_start
        = night_start %} {% set night_end = night_end %} {{ not((skip_during_night_hours
        and ((now_time < night_end) or (now_time > night_start))) or (skip_if_zero_watts
        and (power_level == 0))) }}

        '
    sequence:
    - repeat:
        for_each: '{{ devices_topics }}'
        sequence:
        - service: mqtt.publish
          data:
            qos: 0
            retain: false
            topic: '{{ repeat.item }}'
            payload: '{{ payload }}'

These icons belong on the device, in /ICONS. Each one is at most 32×8 pixels — shown here magnified, at their real proportions.
