Emby Active Streams

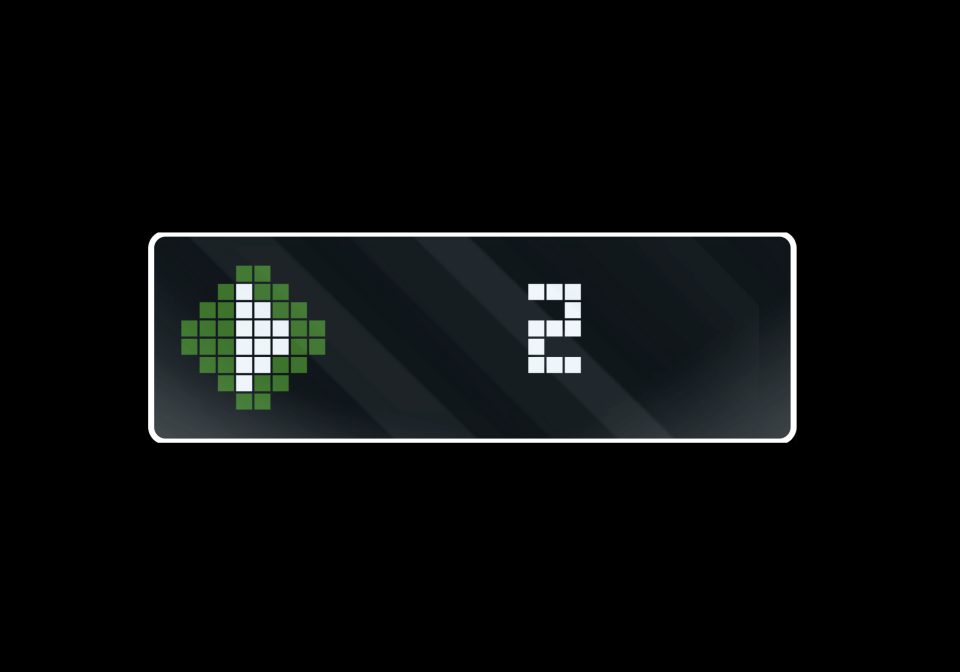

Display total active streams on emby.
| System | N8N |
|---|---|
| Firmware | AWTRIX 3 |
| Topic | Miscellaneous |
| Built by | github.com/oregonpillow |
| File | gLB2OzNPOWZp.json · 4.4 KB |
| Icons | — |
| Published | 15 Feb 2025 · updated 16 Feb 2025 |
| Downloads | 17 |
About
This flows uses the Emby Server API to scrape the Sessions endpoint and parse for active users.
App only shows if Current Streams is at least 1.
Requirements
- ICON 4597 (https://developer.lametric.com/icons)
- Emby Server + Emby API Token
Within the flow replace the following:
<YOUR EMBY SERVER><YOUR AWTRIX IP><YOUR EMBY API TOKEN>
gLB2OzNPOWZp.json
{
"name": "emby streams",
"nodes": [
{
"parameters": {
"rule": {
"interval": [
{
"field": "seconds"
}
]
}
},
"type": "n8n-nodes-base.scheduleTrigger",
"typeVersion": 1.2,
"position": [
0,
0
],
"id": "f824b32d-ec75-424d-b853-812cc545c62f",
"name": "Schedule Trigger"
},
{
"parameters": {
"url": "http://<YOUR EMBY SERVER>/emby/Sessions/?api_key=<YOUR EMBY API TOKEN>",
"options": {}
},
"type": "n8n-nodes-base.httpRequest",
"typeVersion": 4.2,
"position": [
220,
0
],
"id": "8d1eba58-17fa-426e-beb1-435693c01802",
"name": "HTTP Request"
},
{
"parameters": {
"language": "python",
"pythonCode": "total_streams = 0\nfor item in _input.all():\n if \"json\" in item:\n if \"PlayState\" in item[\"json\"]:\n if \"PlayMethod\" in item[\"json\"][\"PlayState\"]:\n total_streams += 1\nreturn {'total_streams': total_streams}"
},
"type": "n8n-nodes-base.code",
"typeVersion": 2,
"position": [
440,
0
],
"id": "21982400-a5d1-4096-8fd8-9bfef17ae5cc",
"name": "Code"
},
{
"parameters": {
"method": "POST",
"url": "http://<YOUR AWTRIX IP>/api/custom",
"sendQuery": true,
"queryParameters": {
"parameters": [
{
"name": "name",
"value": "emby"
}
]
},
"sendBody": true,
"bodyParameters": {
"parameters": [
{
"name": "text",
"value": "={{ $json.total_streams }}"
},
{
"name": "icon",
"value": "4597"
}
]
},
"options": {}
},
"type": "n8n-nodes-base.httpRequest",
"typeVersion": 4.2,
"position": [
1040,
100
],
"id": "8f017a36-eeac-4e69-b313-2207570d6fd1",
"name": "Send to AWTRIX"
},
{
"parameters": {
"conditions": {
"string": [
{
"value1": "={{ $json.total_streams }}",
"value2": "={{ num = 0; num.toString(0) }}"
}
]
},
"combineOperation": "any"
},
"id": "0692fcb7-2f1f-4abf-9e4d-8dd079883280",
"name": "IF",
"type": "n8n-nodes-base.if",
"typeVersion": 1,
"position": [
640,
0
]
},
{
"parameters": {
"method": "POST",
"url": "http://<YOUR AWTRIX IP>/api/custom",
"sendQuery": true,
"queryParameters": {
"parameters": [
{
"name": "name",
"value": "emby"
}
]
},
"options": {}
},
"id": "d6091c1f-9cf6-42fa-a4c3-c9246174b723",
"name": "Remove App",
"type": "n8n-nodes-base.httpRequest",
"typeVersion": 3,
"position": [
1020,
-140
]
}
],
"pinData": {},
"connections": {
"Schedule Trigger": {
"main": [
[
{
"node": "HTTP Request",
"type": "main",
"index": 0
}
]
]
},
"HTTP Request": {
"main": [
[
{
"node": "Code",
"type": "main",
"index": 0
}
]
]
},
"Code": {
"main": [
[
{
"node": "IF",
"type": "main",
"index": 0
}
]
]
},
"IF": {
"main": [
[
{
"node": "Remove App",
"type": "main",
"index": 0
}
],
[
{
"node": "Send to AWTRIX",
"type": "main",
"index": 0
}
]
]
}
},
"active": true,
"settings": {
"executionOrder": "v1"
},
"versionId": "4ff27965-4d9a-40b0-9847-b35965d89b53",
"meta": {
"instanceId": "8b81ea78d527d12a34957ca03d49d26818777373c0787c47a3785e6b80081365"
},
"id": "YiiCn9G2CcbuJgIl",
"tags": []
}More flows for N8N or Miscellaneous
