Big Time Clock
Large Clock with changeable effect
| System | AWTRIX NG Scripts |
|---|---|
| Firmware | AWTRIX NG |
| Topic | Miscellaneous |
| Built by | Denn's DJ |
| File | V8wRl6jMvE72.ax · 1.9 KB |
| Icons | — |
| Published | 8 Aug 2026 |
| Downloads | 18 |

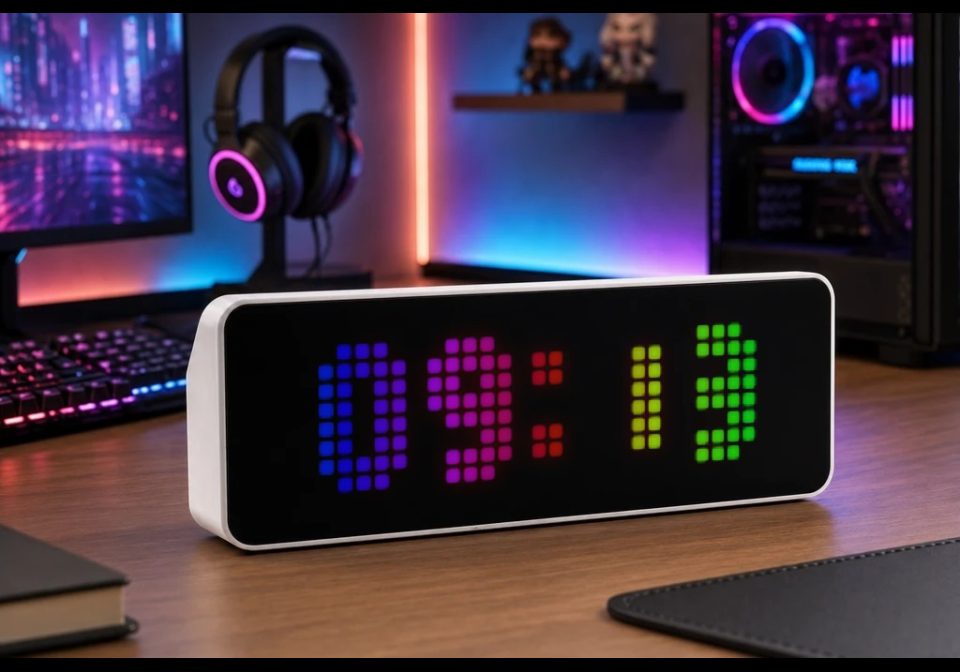

This AWTRIX-NG app displays the current time in HH:MM format using large, bold digits. A selectable animation effect—such as Plasma, Fade, or ColorWaves—appears exclusively within the digits, while the rest of the background remains completely black.
The desired effect can be changed directly in the script via the line effect("Plasma").
V8wRl6jMvE72.ax
# @name EffectClock
# @desc Große HH:MM-Uhr mit frei wählbarem Effekt in den Ziffern
# @author Denn's DJ
# @version 2.1
class EffectClock
var masks
def init()
# Segmentmuster für die Ziffern 0 bis 9
self.masks = [63, 6, 91, 79, 102, 109, 125, 7, 127, 111]
end
def digit_pixel(px, py, left, value)
if px < left || px > left + 4
return false
end
var x = px - left
var mask = self.masks[value]
if x >= 1 && x <= 3 && py <= 1 &&
int(mask / 1) % 2 == 1 return true end
if x >= 3 && py >= 1 && py <= 3 &&
int(mask / 2) % 2 == 1 return true end
if x >= 3 && py >= 4 && py <= 6 &&
int(mask / 4) % 2 == 1 return true end
if x >= 1 && x <= 3 && py >= 6 &&
int(mask / 8) % 2 == 1 return true end
if x <= 1 && py >= 4 && py <= 6 &&
int(mask / 16) % 2 == 1 return true end
if x <= 1 && py >= 1 && py <= 3 &&
int(mask / 32) % 2 == 1 return true end
if x >= 1 && x <= 3 && py >= 3 && py <= 4 &&
int(mask / 64) % 2 == 1 return true end
return false
end
def draw()
var h = hour()
var m = minute()
if h < 0 || m < 0
clear(0x000000)
return
end
# Effekt hier auswählen:
effect("ColorWaves")
var left = (width() - 26) / 2
var top = (height() - 8) / 2
var h1 = int(h / 10)
var h2 = h % 10
var m1 = int(m / 10)
var m2 = m % 10
for y : 0 .. height() - 1
for x : 0 .. width() - 1
var py = y - top
var keep =
self.digit_pixel(x, py, left, h1) ||
self.digit_pixel(x, py, left + 6, h2) ||
self.digit_pixel(x, py, left + 15, m1) ||
self.digit_pixel(x, py, left + 21, m2) ||
((x == left + 12 || x == left + 13) &&
((py >= 1 && py <= 2) ||
(py >= 5 && py <= 6)))
if !keep
pixel(x, y, 0x000000)
end
end
end
end
end
return EffectClock()Install it on your AWTRIX NG
Your browser writes the script straight to the device on your network. It joins the app rotation right away.
Some browsers refuse to talk to a device on your network from a public page. Download the flow and paste it into the Scripts tab of your device, or install it from a terminal:
