Crypto Ticker

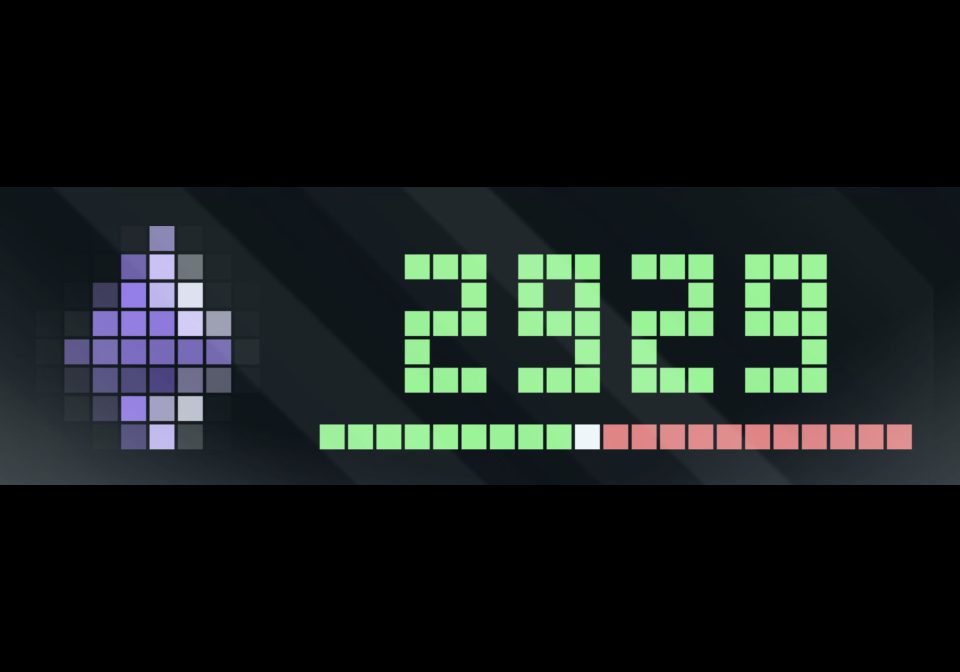

Node-RED flow that streams live cryptocurrency prices from Kraken WebSocket v2 and displays them on an AWTRIX 3 LED display. The project supports multiple assets (e.g. Bitcoin, Ethereum) through a single WebSocket connection, renders price trend indicato
| System | Node-RED |
|---|---|
| Firmware | AWTRIX 3 |
| Topic | Miscellaneous |
| Built by | carlos |
| File | RpwLoMMYolZ4.json · 10.1 KB |
| Icons | 2 |
| Published | 27 Dec 2025 · updated 27 Dec 2025 |
| Downloads | 58 |
This project is a Node-RED–based crypto price visualizer built around Kraken WebSocket API v2 and AWTRIX 3 LED displays. Currently Bitcoin and Ethereum are configured. You can add other tokens easily.
It establishes one persistent WebSocket connection to Kraken and subscribes to multiple ticker symbols simultaneously (e.g. BTC/USD, ETH/USD). Incoming market data is parsed and routed through a central Crypto Router function, which:
- Correctly extracts symbol and price data from Kraken WS v2 payloads
- Formats prices as full numeric values (no K/M notation)
- Applies color logic based on price vs VWAP
- Each asset is displayed as a separate AWTRIX app, rotating independently on the LED matrix.
An optional visual progress bar can be rendered at the bottom of the display to show the current price position relative to the daily low/high range, including a precise white pixel marker for the exact price.
Crypto Router Configuration
At the top of the Crypto Router function, two configuration options control global behavior:
let progressbar = true; // enable high / low "progressbar"
let awtrix_url = "http://awtrix.lan/"; // including ending slash
Configuration Options
-
progressbar
Enables or disables rendering of the low/high progress bar on the AWTRIX display.
When enabled, a red baseline, green progress indicator, and white price marker are drawn. -
awtrix_url
Base URL of the AWTRIX 3 device.
The router dynamically appends the app name using the supported query-parameter API:
/api/custom?name=
➕ Adding a New Cryptocurrency (Quick Steps)
-
Add symbol to Kraken subscription
- Edit Inject node → add
"SYMBOL/USD"tosymbol[]
- Edit Inject node → add
-
Register asset in Crypto Router
-
Add entry to
assetsmap:"SOL/USD": { name: "solana", icon: "solana" }
-
-
(Optional) Upload icon
- Add GIF to AWTRIX and reference its name
-
Deploy
- New currency appears as a separate AWTRIX app automatically
RpwLoMMYolZ4.json
[
{
